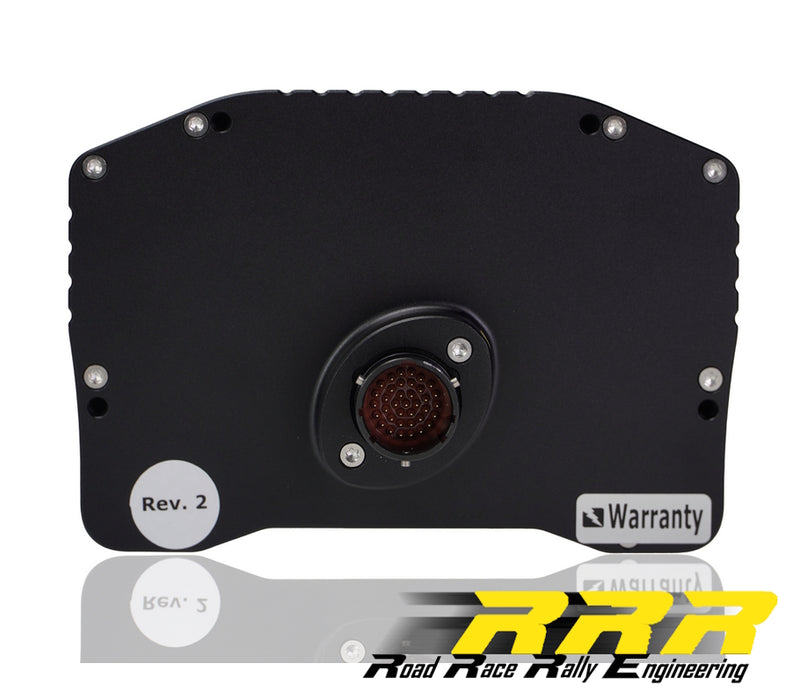

The ADU comes with multiple pre-configured pages, which can be customized by the end user to display data required at every race stage (e.g. practice, qualification, race, troubleshooting, etc.) and changed manually or automatically (based on an advanced conditions system). Each channel displayed on a page (gauges, icons, texts, etc.) can be easily modified using user-friendly, Windows based software. Our comprehensive overlay system facilitates a multiple page display for important data (e.g. low oil pressure, best lap, etc.) independently of the actual page displayed.

Flush mount panels for ADU7 are available here  and for ADU5 here

For logging, you need good quality USB memory we recommend this tried and tested memory stick .



To communicate with the ADU you need a CAN bus interface, it is possible to use PEAK-System or Kvaser or Ecumaster.

Ecumaster USB to CAN found here

Features
Lap timer: Lap timer with memory, predictive timing, triggered by a beacon or GPS
Customization: 48 available pages, user defined content, custom graphics allowed
Functions: User configurable maths and logic
Overlays: Yes user defined
CAN stream: User defined, up to 48 input messages, predefined streams for popular ECUs
General specification
Operating voltage: 6-22V, immunity to transients according to ISO 7637, with reverse polarity protection
CPU: 32 bits, automotive, 90MIPS
Temperature range: -30°C to 80°C
Enclosure: Anodized aluminium, CNC machined, IP61
Connection: Automotive 36-way AMP
ADU 5": Antiglare TFT, 800x480, active area 108x64.8 mm, luminance 600 cd/m2
ADU 7": Antiglare TFT, 800x480, active area 154.08x85.92 mm,
Alarms: 15 x ultrabright RGB LEDs used for alarms and shift lights
Communication
CAN: 2x CAN 2.0B (250, 500, 1000 kbps) independent
Serial: RS232 (Rx, Tx)
USB: Yes, for data logging
Inputs
Analog: 8 analogue inputs, 10 bits, 500Hz, software selectable pullups/pulldowns
Digital 8 inputs with user defined sensitivity
Outputs
Aux outputs 2 x protected 3A low side outputs
Logging
Memory: USB Flash Memory
Rate: 500Hz
Clock Yes
Others
Accelerometer: 3 axis gyro and 3 axis acceleration
Light sensor: Yes for auto brightness functionality
Temperature sensor: Built in to trace device internal temperature
Real time clock: yes with internal power supply
