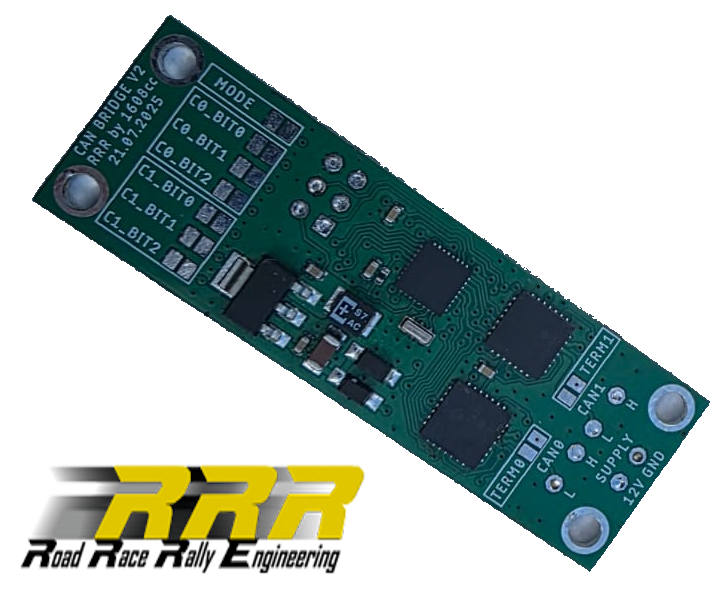

This new version of our CAN Bridge module extends the number of available CAN bus bitrates.
An even more compact 60x20mm circuit than previous V1 device can be an invaluable asset if you need to connect to an uncommon CAN bus rate, or extract messages from a third vehicle network in places with lack of space - like a ECU's or dash.
Bitrate selection is done via two sets of solder pads, one for CAN INPUT and one for CAN OUTPUT, with configurable termination for both as well.
It also allows for seamless message sending from the uncommon bitrate chassis CAN to the ADU for additional features such as indicator lights and more.
Automotive-grade components combined with a robust SMD construction ensure uninterrupted functionality across a wide temperature range.
List of supported bitrates (other on request):
- 47.619kbps
- 50kbps
- 62.5kbps
- 100kbps
- 125kbps
- 160kbps
- 250kbps
- 500kbps
- 1Mbps
Please bear in mind that our bridge is only one-way, so if you need two-way traffic, you'll need a separate device.
