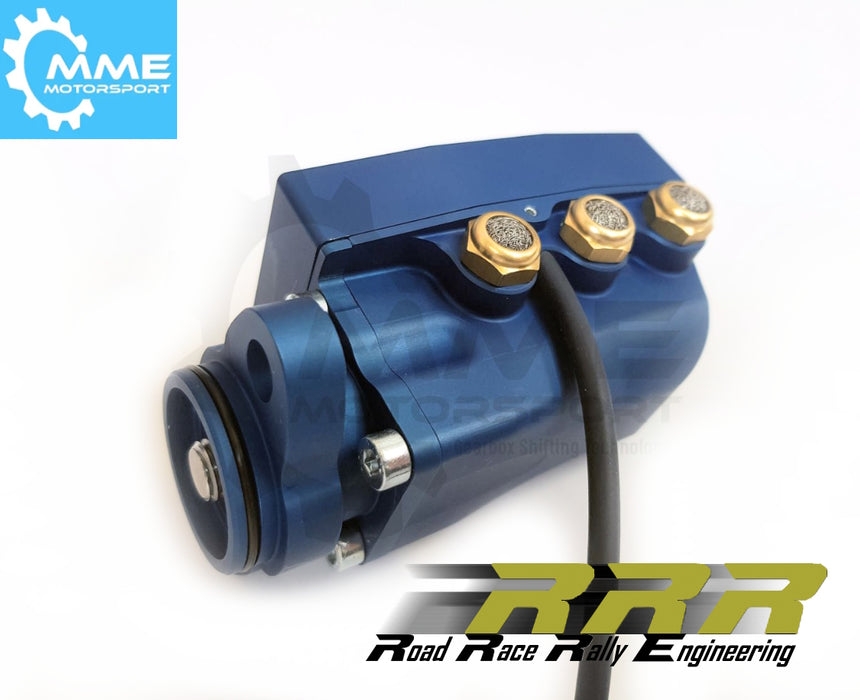

Gearbox actuator with integrated valves suitable for QKE/QBM/QBE
· Suitable for Quaife direct to gearbox mounting
· Supported gearboxes:QKE6V,QKE8J,QBE9J,QKE9D-H,QKE10I,QKE11E,QKE45Z,QBM2M,QBM6M,QBM7M,QBE46Z,QBE6U,QBE21C
· Powered by MME's Hypervelocity valves (Flow 900NI/min @8 bars)
· Two-way actuator (max+17mm/-17mm)with integrated valves
· No need for extra valve block
· Only weights 630 g
· 1005 N push and 915 pull force @8 bars
Technical specifications
Dimensions Lx WxH 177×50×57 mm
Weight 630g
Operating pressure 6.9 Bar
Stroke 17+17 mm
Operating force[8Barl Push 1005 N , Pull 915 N
Pneumatic fitting G1/8-Pneumatic tube 8/6 mm. alternative AN4 are available here
Valve Coll voltage 12V
Valve Coil Current Max 500mA per valve
AN4 fitting optional
|25ohm
500 mAper valve
